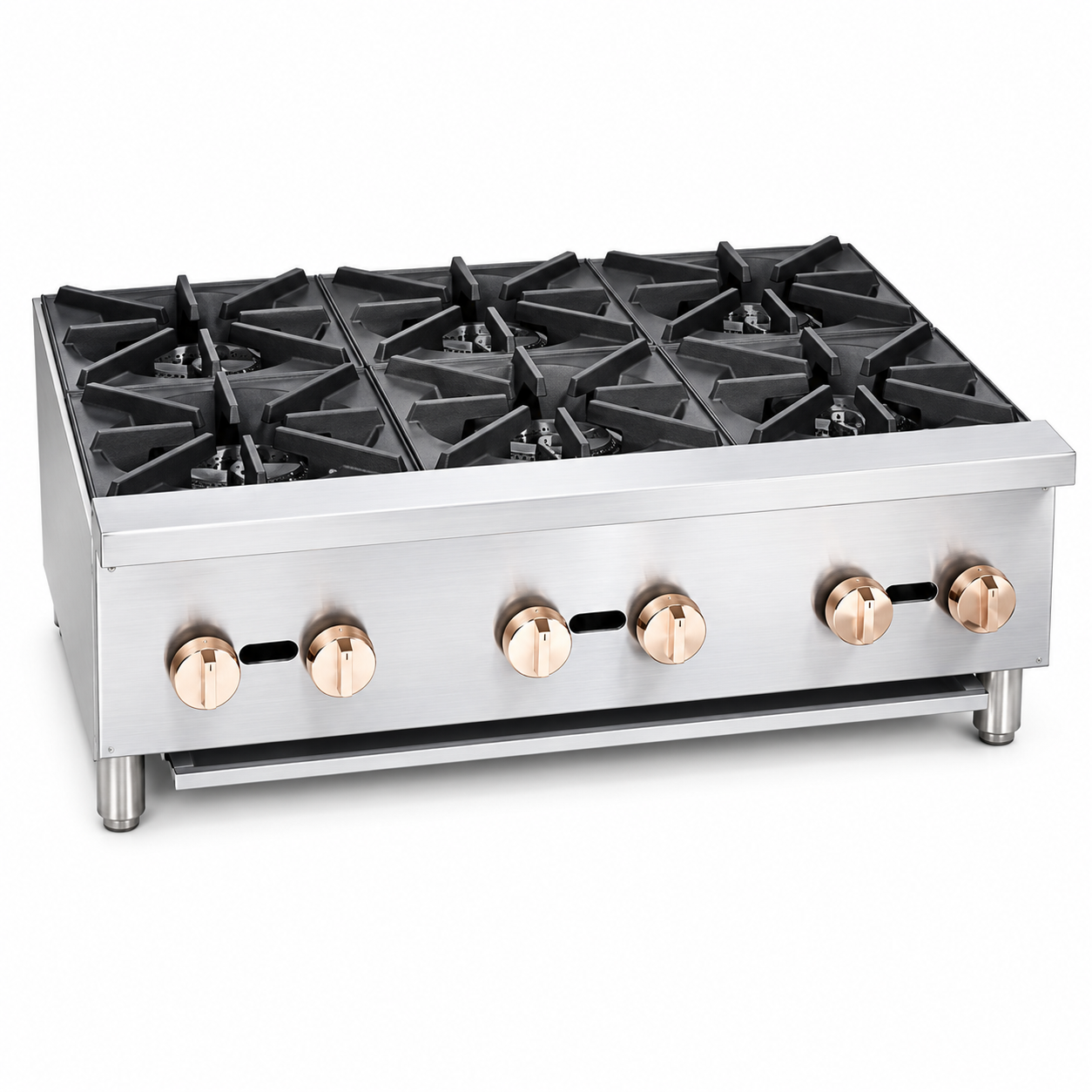

CBHP-36-6 36" Wide Commercial Gas Hotplate with 6 Open Burners - 150,000 BTU

CBHP-36-6 36" Wide Gas Hotplate w/ 6 Open Burners

High-performance commercial countertop gas hotplate designed for heavy-duty restaurant use, featuring 6 powerful open burners delivering a combined 150,000 BTU/hr.

Specifications

• Model: CBHP-36-6
• Total Output: 150,000 BTU/HR (25,000 BTU/HR per burner)
• Burners: 6 Octagon cast iron burners
• Grates: 12" x 12" (30 x 30 cm) heavy-duty cast iron grates
• Gas Connection: 3/4" NPT rear gas connection
• Packing Dimensions: 39" W x 30" D x 20" H
• Net Weight (N/W): 183 lbs
• Gross Weight (G/W): 220 lbs

Key Features

• Stainless steel front with galvanized sides for durability and easy cleaning
• Standby stainless steel pilot for quick, reliable ignition
• Full-width slide-out crumb tray located at the bottom
• Heavy-duty adjustable legs for stable countertop placement
• Durable brass control valves
• Easy pilot access with dedicated adjustment screw
• Field convertible (shipped with gas regulator and conversion kit included)
• ETL and ETL Sanitation certified for commercial food service compliance
• One-year limited parts and labor warranty

Installation & Safety Requirements

• Supplied gas pressure regulator must be installed (Natural Gas: 4.0" W.C. / Propane Gas: 10.0" W.C.).
• Commercial installation only; not intended for residential/home use.
• Requires adequate commercial kitchen ventilation.
• Clearance Requirements:
  • Non-Combustibles: Sides 0", Back 0"
  • Combustibles: Sides 4", Back 4"
• Must be installed by qualified technicians in accordance with ANSI Z223.1/NFPA #54 codes.
