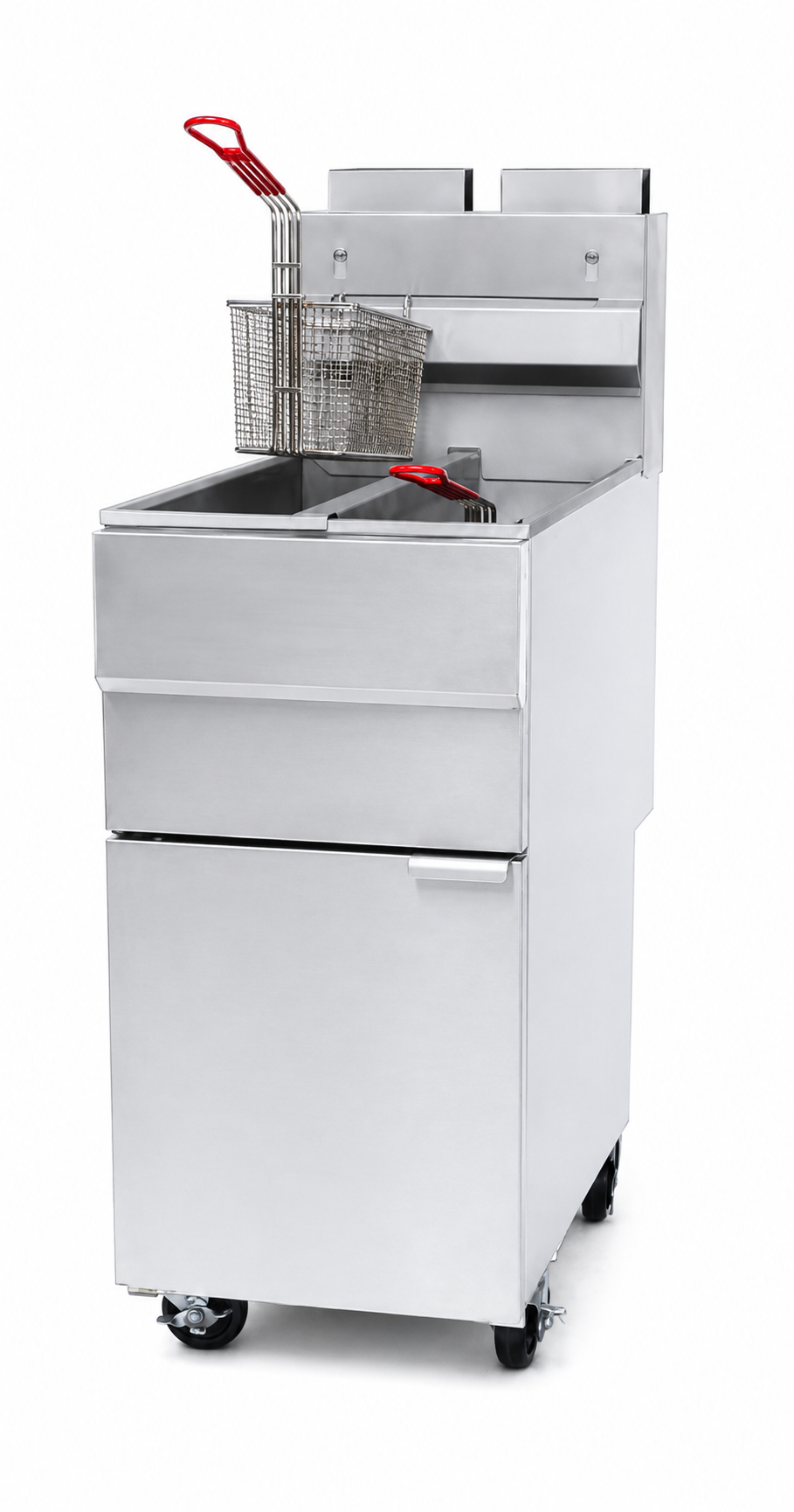

Copper Beech CBF-2525 Commercial Split Pot Gas Tube Fryer, 120,000 BTU

Copper Beech CBF-2525Q Split Pot Gas Tube Fryer

MODEL: CBF-2525Q
DESCRIPTION: SPLIT POT GAS TUBE FRYER
TOTAL BTU/HR: 120,000
PACKING SIZE (IN): 18" x 33" x 34"
N/W (LB): 157
G/W (LB): 181

FEATURES

• Stainless steel front with galvanized sides
• Vertical burner (30,000 BTU/HR each) cast iron
• Thermostatically controlled (200°F - 400°F)
• Open S/S fryer pot with cold zone
• Standby S/S pilot for easy start
• Casters included
• Milli-volt control valve
• Prompt response thermostat ensures fast temp recovery
• High-limit for safety (450°F)
• 1-1/4" full port drain valve
• S/S heat exchanger with baffle for high efficiency
• S/S hanger plate at the back
• Two baskets included
• 3/4" NPT rear gas connection
• Gas type should be specified when confirming order
• 3-year parts warranty

Installation Instructions

1. A gas pressure regulator supplied with the unit must be installed: Natural Gas 4.0" (102 mm) W.C. / Propane Gas 10.0" (254 mm) W.C.
2. An adequate ventilation system is required for commercial cooking equipment.
3. These units are manufactured for installation in accordance with National Fuel Gas Code, ANSI-Z223.1/NFPA #54 (latest edition).
4. This appliance is intended for commercial installation only and is not intended for home use.
5. Equipment clearance requirement:
   • Sides: Non-combustibles 0" | Combustibles 4"
   • Back: Non-combustibles 0" | Combustibles 4"
6. All the installation must be performed by qualified technicians.
