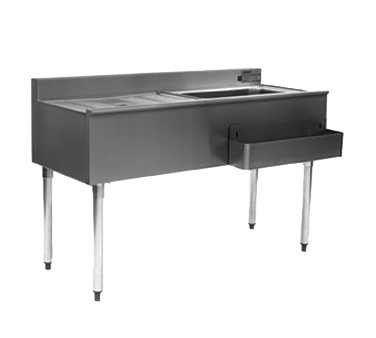

Eagle Group - Model CWS4-18L 48 Inch Underbar Cocktail Workstation with Ice Bin and Drainboard

The Eagle CWS4-18L 1800 Series Underbar Cocktail Workstation is a commercial-grade underbar ice bin and drainboard designed for high-performance beverage service. Measuring 48 inches wide by 20 inches deep, this model features a fully insulated 24-inch deep ice bin located on the left side, with a capacity of 75 pounds, ideal for efficient ice storage in busy bar environments. Constructed from durable type 304 stainless steel with galvanized legs, it offers corrosion resistance and longevity. The workstation incorporates a 24-inch speedrail and a right-side drainboard, facilitating streamlined workflow and quick cleanup, making it suitable for moderate-volume hospitality operations requiring reliable underbar equipment with integrated storage and work surface features.

Features

The Eagle CWS4-18L underbar cocktail workstation offers a robust stainless steel construction with a 75 lb. fully insulated ice bin optimized for efficient ice storage, a 24-inch speedrail for quick access to bottles, and a drainboard for seamless cleanup. Designed for moderate-volume bars and restaurants, it integrates well with existing underbar setups, providing durable, easy-to-maintain components that enhance workflow and sanitation. Its galvanized tubular legs with adjustable feet ensure stability on uneven flooring, making it a versatile choice for fast-paced foodservice environments.

• Capacity: 75-pound insulated ice bin for continuous ice availability
• Material: Heavy-duty type 304 stainless steel and galvanized legs
• Ease of Maintenance: Welded construction simplifies cleaning and durability
• Workflow Efficiency: Integrated speedrail and drainboard optimize beverage prep
• Dimensions & Access: 48"W x 20"D with 24" deep fully insulated ice bin for compact placement

Ideal for bar setups needing reliable ice storage and streamlined workspace in moderate-volume settings.

Technical Specs

The Eagle CWS4-18L model features a 48-inch width with a 20-inch depth, built from high-quality stainless steel and galvanized steel for enhanced durability and corrosion resistance. It includes a 75-pound capacity insulated ice bin located on the left, with a 24-inch speedrail and a right-side drainboard for efficient service and clean-up. The unit weighs approximately 72 lbs and is NSF listed, ensuring compliance with sanitation standards. Operating in typical foodservice environments, it does not feature active refrigeration but relies on the ice stored within the insulated bin. The 4-inch splash guard provides spill containment, while the stainless steel construction with welded joints ensures longevity. The unit requires no electrical connection but must be installed on a stable surface with adequate drainage and clearance for access and maintenance.

• Electrical Requirements: None; passive drain and ice storage system
• Cooling Method: Fully insulated ice bin with dry storage
• Refrigeration Type: Not applicable
• Production Capacity: Stores 75 lbs of ice
• Construction & Finish: 304 stainless steel front and top with galvanized steel ends
• Dimensions: 48" W x 20" D x standard height (approximate)
• Weight: 72 lbs
• Food Safety: Material compliant with sanitation standards, easy to clean
• Temperature Resistance: Designed for ambient settings, operating temperature confined to ice and surface contact

• Electrical Compatibility: No electrical power required, drain connection standard
• Drainage: 1-1/2" NPT drain connection for efficient water removal
• Installation Clearance: Adequate side and rear clearance for airflow and maintenance
• Drainboard Integration: Right-side drain for quick drainage and workspace isolation
• Material Finish: Stainless steel finish optimized for easy cleaning and corrosion resistance
